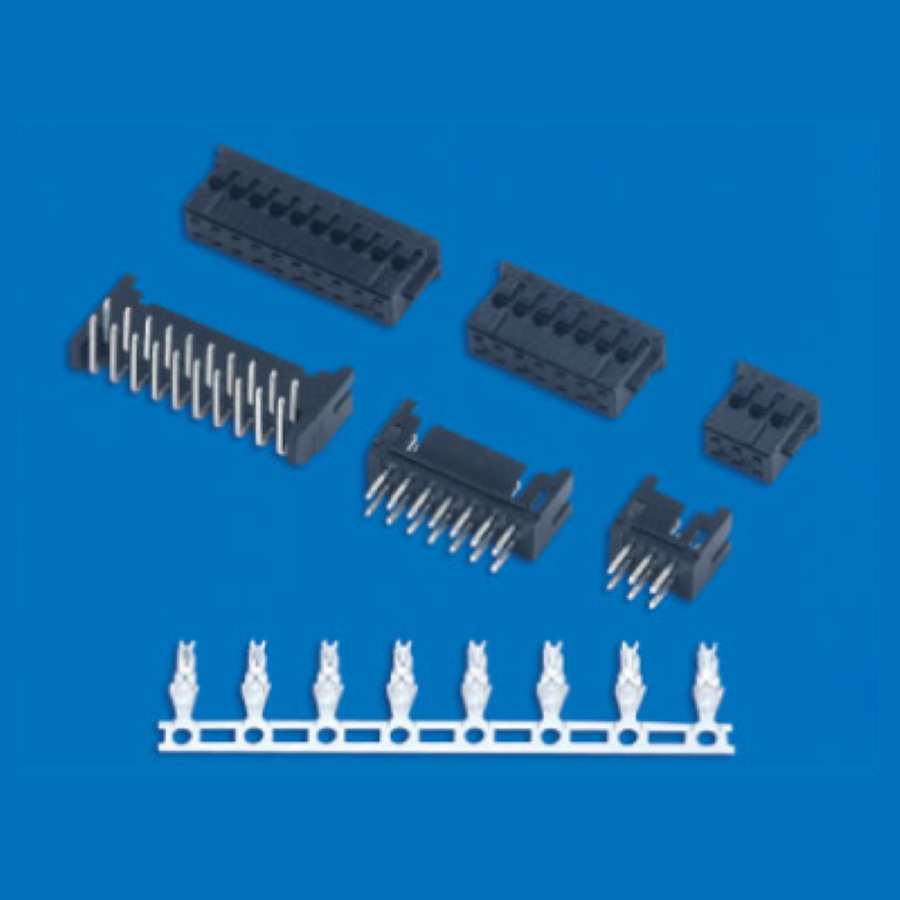

HX20016-6A black
Manufacturer:
Hongxing
Mfr.Part #:
HX20016-6A black
Datasheet:
Description:
Board to Board Connectors Through Hole Number of Positions:6 Number of Rows:2 Row Spacing:2 mm Pitch:2 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Bulk |
| Voltage Rating | 125 V |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | 2 mm |
| Current Rating | 3 A |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 2 mm |
| Housing Material | Nylon |
| Stack Height | 7.95 mm |
| Mounting Angle | Straight |
Stock: 99
Distributors
pcbx
pcbxUnit Price$0.12116
Ext.Price$0.12116
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.12116 | $0.12116 |
| 10 | $0.06058 | $0.60580 |
| 50 | $0.05437 | $2.71850 |
| 100 | $0.04879 | $4.87900 |
| 500 | $0.04185 | $20.92500 |
| 1000 | $0.03589 | $35.89000 |
| 3000 | $0.03417 | $102.51000 |
| 5000 | $0.03254 | $162.70000 |
| 10000 | $0.03067 | $306.70000 |
